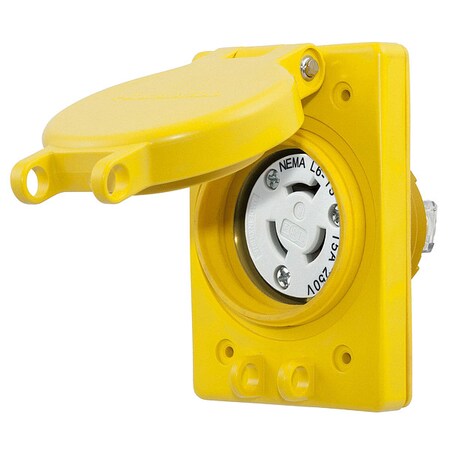

Watertight Flanged Locking Receptacle, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount

Description

<p>The HUBBELL 15A Watertight Locking Receptacle is a flanged, flush-mount electrical device suitable for use in industrial environments where secure and watertight connections are specified. Rated for 250V AC, this receptacle includes a locking mechanism with a lift cover.</p><br /><br /><p>Key Features of the HUBBELL 15A Watertight Locking Receptacle:<br><br /></p><ul><br /><li>Current/Voltage Rating: 15 A, 250V AC</li><br /><li>NEMA Configuration: L6-15R (2-pole, 3-wire)</li><br /><li>Mount Type: Flush mount with rectangular flange</li><br /><li>Casing Materials: Impact-resistant PBT body; thermoplastic elastomer housing and insulation; clear polycarbonate retainer</li><br /><li>Contact Material: Nickel-plated brass contacts</li><br /><li>Cover Included: Includes protective lift cover</li><br /><li>Operating Temperature Range: -40°F to 140°F (-40°C to +60°C)</li><br /><li>NEMA Enclosure Ratings: Meets NEMA Types 4, 4X, 12, 6, and 6P requirements; IP69K rated when in use</li><br /><li>Standards Compliance: ANSI; NEMA WD-1 &amp; WD-6 standards compliant</li><br /><li>Wire Connection Type: Screw terminals support #18–#10 AWG wire sizes</li><br /><li>Resistance Properties: UV stabilized materials; rated as impact resistant and watertight according to product specifications</li></ul><p>&nbsp;</p>
