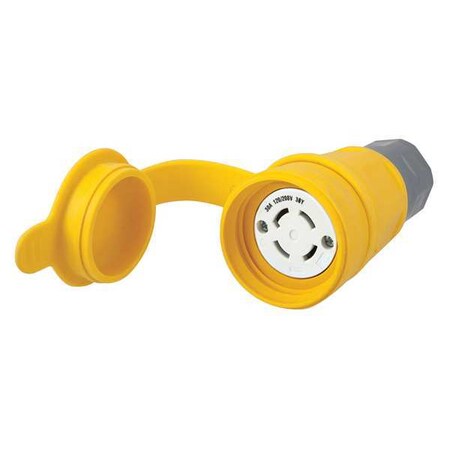

Watertight Locking Connector, Non-NEMA, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals

Description

<p>The HUBBELL 30A Watertight Locking Connector is a four-pole, four-wire connector body intended for use in industrial and commercial electrical applications where watertight connections are specified. Rated for 120/208V AC and 30 amps, this connector features a thermoplastic elastomer housing with a smooth surface to facilitate cleaning procedures. The unit accommodates cord sizes from 0.375 in to 1.125 in and utilizes screw terminals for wire connection.</p><br /><br /><p>Key Features of the HUBBELL 30A Watertight Locking Connector:<br><br /></p><ul><br /><li>Contact Material: Nickel-plated brass contacts for electrical conductivity.</li><br /><li>Housing Material: Thermoplastic elastomer and Valox housing materials used in construction.</li><br /><li>NEMA Enclosure Rating: Rated NEMA 4, 4X, 6, 6P, and 12; UL Listed; IP69K protection against high-pressure washdowns</li><br /><li>Cord Accommodation: Accepts cable diameters between 0.375 in to 1.125 in; supports wire sizes from minimum of #18 AWG up to maximum of #8 AWG.</li><br /><li>Temperature Range: Operates continuously from -40°C to +60°C.</li><br /><li>Standards Compliance: Meets NEMA WD-1, WD-6, ANSI standards; UL498 current interrupting rated; UV stabilized materials</li><br /><li>Connection Orientation &amp; Style: Straight connection orientation with standard wiring style using screw terminals; grounded design with shrouded construction enhances installation suitability.</li></ul><p>&nbsp;</p>
