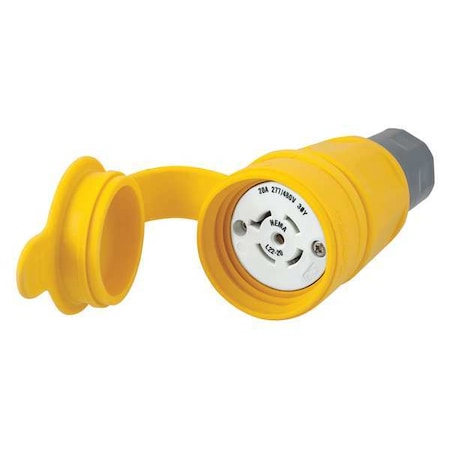

Watertight Locking Connector, L22-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals

Description

<p>The HUBBELL 20A Watertight Locking Connector (L22-20R) is a four-pole, five-wire connector designed for industrial and commercial electrical applications where watertight characteristics are specified. Rated for 277/480VAC and 20 amps, this connector features a thermoplastic elastomer body designed with a smooth surface. It includes stainless steel hardware and connection points.</p><br /><br /><p>Key Features of the HUBBELL 20A Watertight Locking Connector:<br><br /></p><ul><br /><li>Body &amp; Housing Material: Constructed from thermoplastic elastomer with Valox components for durability.</li><br /><li>Cord Accommodation: Accepts cable diameters from 0.375 in to 0.875 in; maximum wire size up to 10 AWG.</li><br /><li>NEMA Enclosure Rating: Rated NEMA 4, 4X, 6, 6P, and 12; rated for resistance to moisture and dust ingress.</li><br /><li>IP Rating: IP69K rated</li><br /><li>Contact Material: Nickel-plated brass contacts ensure reliable electrical connections.</li><br /><li>Operating Temperature Range: Operating temperature range: -40°C to +60°C</li><br /><li>UV Resistance: All exposed materials are UV stabilized for outdoor suitability.</li><br /><li>Wire Connection Type: Screw terminals accommodate standard wiring practices.</li><br /><li>Standards Compliance: Meets NEMA WD-1, WD-6, ANSI standards; UL listed performance attributes including current interruption per UL498 requirements.</li></ul><p>&nbsp;</p>
