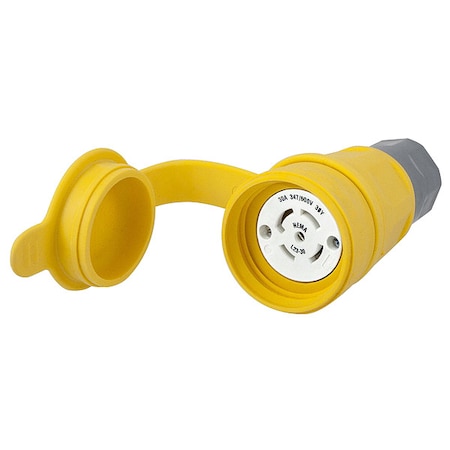

Watertight Locking Connector, L23-30R, 30 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals

Description

<p>The HUBBELL 30A Watertight Locking Connector L23-30R is a four-pole, five-wire connector suitable for use in industrial and commercial electrical applications where watertight properties are specified. Rated for 347/600V AC and 30 amps, this connector features a thermoplastic elastomer body with a smooth surface finish. It is equipped with stainless steel hardware and nickel-plated brass contacts.</p><br /><br /><p>Key Features of the HUBBELL 30A Watertight Locking Connector L23-30R:<br><br /></p><ul><br /><li>Body Material: Thermoplastic elastomer housing; rated for exposure to moisture, UV, and certain chemicals as per manufacturer specifications.</li><br /><li>Cord Accommodation: Accepts cord diameters from 0.375 in to 1.125 in; suitable for wire sizes ranging from 18 AWG to 8 AWG.</li><br /><li>NEMA Enclosure Rating: Rated NEMA Types 4, 4X, 6, 6P, and 12; IP69K rated.</li><br /><li>Contact Material: Nickel-plated brass contacts.</li><br /><li>Operating Temperature Range: Rated for operation within -40°C to +60°C continuous temperature range.</li><br /><li>Connection Type: Straight connection orientation with screw terminals; grounded design complies with NEMA WD-1/WD-6 &amp; ANSI standards.</li><br /><li>Corrosion Resistant: Exposed materials are UV stabilized as per manufacturer specification;</li></ul><p>&nbsp;</p>
