WEG

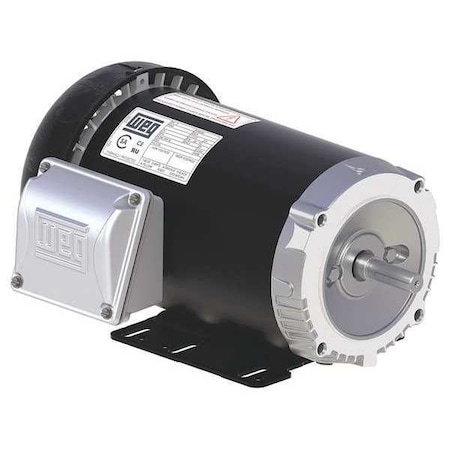

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 208-230/460V AC Voltage
SKU: IM-9123606 · MPN: .7536ES3E56C-S
$332.15
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 3475 rpm, Frame 56C, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.50-2.26/1.13 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 3001-3600
Specifications
| Brand | WEG |
|---|---|
| MPN | .7536ES3E56C-S |
| Country of Origin | ZZ |
| Unit of Measure | EA |
| Shipping Weight | 22.7 lb |
