WEG

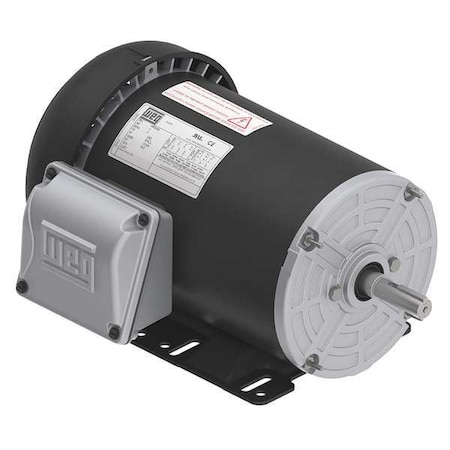

Three-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 3500 rpm Nameplate RPM
SKU: IM-9123387 · MPN: .5036ES3E56-S
$275.54
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 3500 rpm, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.86-1.69/0.843 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 68 Percent, Continuous Duty, 3001-3600, CSA, UL
Specifications
| Brand | WEG |
|---|---|
| MPN | .5036ES3E56-S |
| Country of Origin | ZZ |
| Unit of Measure | EA |
| Shipping Weight | 21.1 lb |
