Dayton

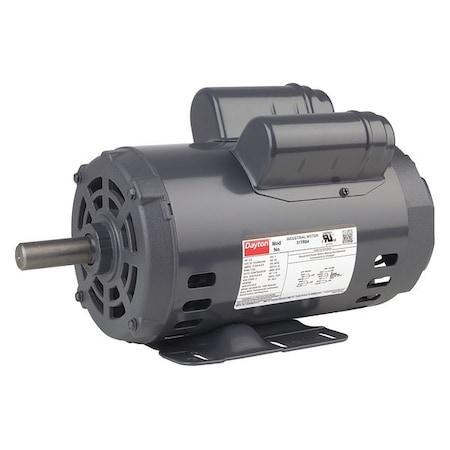

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 56HZ Frame
SKU: IM-9097137 · MPN: 119178.00 · UPC: 190735255940
$1,071.59
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 17.6/9.5-8.8 A, 56HZ Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
Specifications
| Brand | Dayton |
|---|---|
| MPN | 119178.00 |
| UPC | 190735255940 |
| Country of Origin | Mexico |
| Unit of Measure | EA |
| Shipping Weight | 50.85 lb |
