IFM

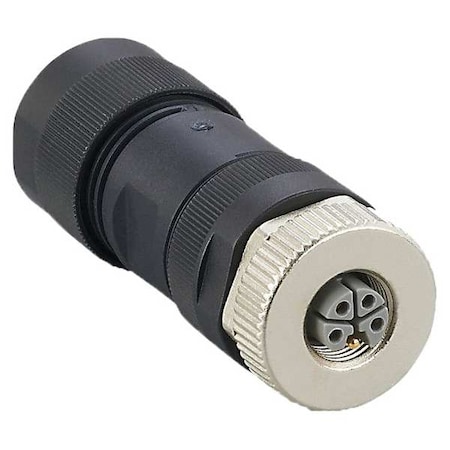

Wireable M12 connector
SKU: IM-903509041 · MPN: E12672
$43.62
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
M12 Circular Connector, Mounting Style Female Thread, Application Profinet DC Power, Number of Poles 5, Coding L, Mounting Type Front Mounting, Connection Type Gold-Plated Contacts, Thread Size M12, Voltage Rating 63V DC, Nominal Voltage 63V DC, Nominal Current 16 A, Locking Style Screw Connection, Housing Material Nylon, Includes Nut Yes, Connector Body Type Socket, Conductor Cross Section Size 2.5 sq mm, Cable Outside Diameter 13 mm, Connector Orientation Straight
Specifications
| Brand | IFM |
|---|---|
| MPN | E12672 |
| Country of Origin | Germany |
| Unit of Measure | EA |
| Shipping Weight | 0.1 lb |
