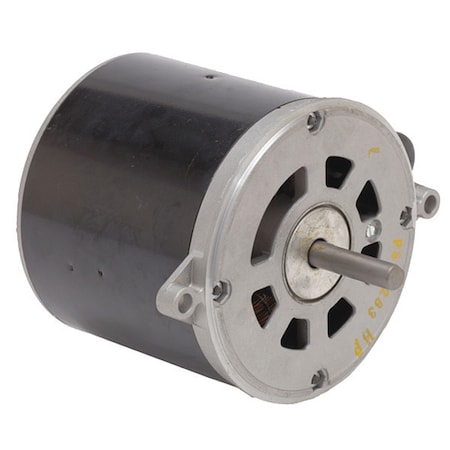

Oil Burner Motor, 1/8 hp

Description

Oil Burner Motor, Single Phase, Motor Design Split-Phase, 1/8 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115V AC, 2.4 A Full Load Amps, 48N Frame, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Face, Shaft Length 2 in, Shaft Dia. 1/2 in
