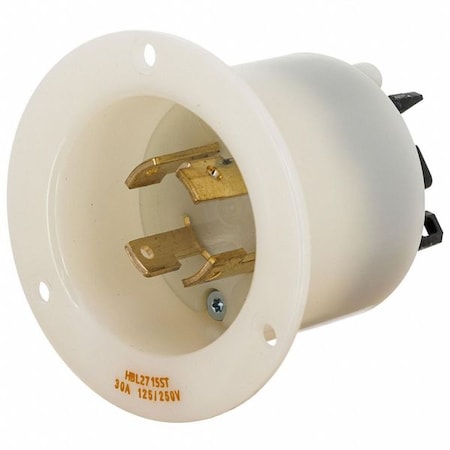

Locking Receptacle, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Spring Clamp Terminals

Description

<p>The HUBBELL Locking Receptacle is a flanged electrical receptacle intended for indoor use. It features spring clamp terminals allow tool-free wire termination, and its funnel-shaped wire entry facilitates backwired installation. This locking receptacle accommodates 14 AWG to 6 AWG copper wires and is compatible with NEMA L14-30R configuration with grounding requirements.</p><br /><br /><p>Key Features of the HUBBELL Locking Receptacle:<br><br /></p><ul><br /><li>Current/Voltage Rating: Rated for 30 A at 125/250V AC</li><br /><li>NEMA Configuration: Plug - L14-30P; Receptacle - L14-30R</li><br /><li>Wire Connection Type: Spring clamp terminals enable tool-free terminations</li><br /><li>Wire Size Compatibility: Accepts copper wires from 14 AWG to 6 AWG</li><br /><li>Number of Poles/Wires/Blades: 3 poles, 4 wires, and 4 blades</li><br /><li>Horsepower Rating: Rated for circuits up to 2 hp</li><br /><li>Housing Material &amp; Finish: Nylon housing with natural finish; UL94 HB flammability rating</li><br /><li>Operating Temperature Range: -40°C to +75°C maximum operating temperature</li><br /><li>Certain Dimensions: Face diameter – 2.23 in; Flange diameter – 2.686 in; Overall depth – 2.56 in; Face plate width – .09 in</li><br /><li>IP Rating: IP20 (protection against solid objects over 12mm)</li><br /><li>Standards Compliance: CSA C22.2 No.42, Federal Specification W-C-596, UL498 certified</li></ul><p>&nbsp;</p>
