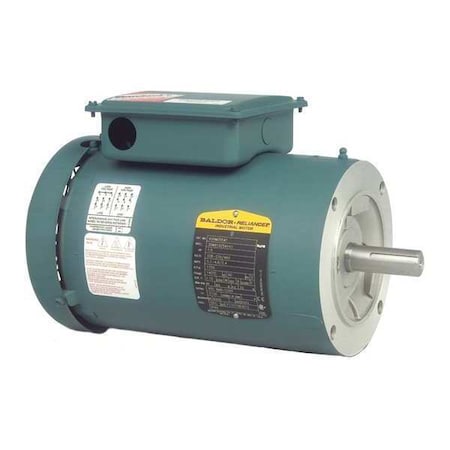

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V Voltage, 1,740 Nameplate RPM

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,740, Frame 56C, Voltage 230/460V, 60 Hz Hz, Three Phase, Full Load Amps 1.1 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, Reversible Motor Shaft Rotation, Nominal Efficiency 72 Percent, 1,701-1,800, CE, CSA, RoHS Compliant, UR, WEEE
