WEG

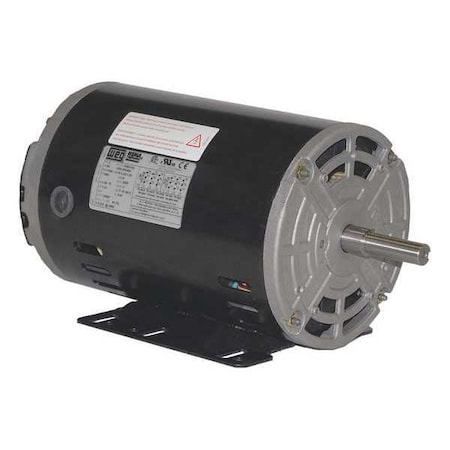

Three-Phase General Purpose Motor, 3/4 HP, 56H Frame, 208-230/460V AC Voltage
SKU: IM-7745346 · MPN: .7512OT3E56-S
$418.79
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 1160 rpm, Frame 56H, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.78-2.52/1.26 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 81.7 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Specifications
| Brand | WEG |
|---|---|
| MPN | .7512OT3E56-S |
| Country of Origin | ZZ |
| Unit of Measure | EA |
| Shipping Weight | 36.62 lb |
