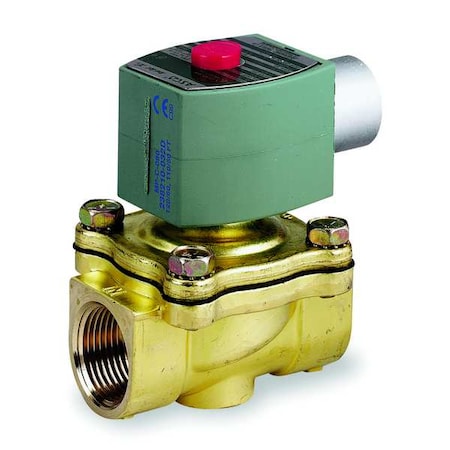

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 24V DC, High Flow, Brass, NBR

Description

<p>The ASCO 8210G009LF 24/DC is a pilot-operated, 2-way/2-position solenoid valve with a normally closed configuration. Designed for controlling the flow of air, inert gas, and water, this valve features a brass body and NBR seals. The valve operates on 24V DC with an 11.6 W coil and includes the coil and seal as part of the package.</p> <p>Key Features: <ul><li>- Valve Type and Design: Flow capacity Cv = 5, 2-way/2-position, normally closed</li> <li>- Materials: Brass body and NBR seal material</li> <li>- Electrical: 24V DC voltage, 11.6 W coil wattage, coil insulation class F</li> <li>- Connections: Inlet and outlet NPTF threaded 3/4 in nominal pipe size</li> <li>- Operating Pressure Differential: 5 to 100 psi for air/inert gas; 5 to 125 psi for water and light oil</li> <li>- Temperature Ratings: Ambient 14°F to 140°F; fluid up to 180°F</li> <li>- Flow Capacity: Cv = 5, with a 3/4 in orifice diameter</li> <li>- Environmental and Enclosure Ratings: IP65; NEMA 1, 2, 3, 3S, 4, 4X enclosure classifications</li> <li>- Mounting: Vertical orientation recommended</li> <li>- Response Time: 1 second</li> <li>- Electrical Connection: 1/2 in conduit hub</li> <li>- Additional: Coil enclosure IP65 rated, includes coil and seal, overall dimensions approximately 3-21/32 in height, 2-9/32 in length, 2-13/16 in width</li></ul></p>
