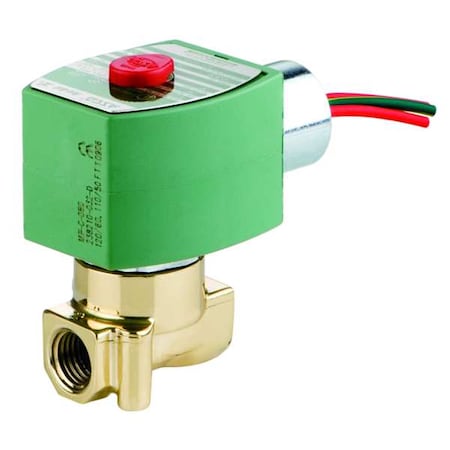

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 220V/50V, 240V/60V, High Flow

Description

<p>The ASCO 8262H022LF is a direct-acting, normally closed 2-way solenoid valve designed to control the flow of various fluids and gases, including air, water, and light oils. It is constructed with a brass valve body and is suitable for installation in either horizontal or vertical orientations. The valve operates with a coil rated for 220V/50Hz or 240V/60Hz electrical supply and is equipped with 16-inch leads for electrical connection. It includes both the coil and seal for installation, with ambient operating temperature: down to -13°F; fluid temperature range: up to 180°F.</p> <p>Key Features: <ul><li>- Valve Design: 2-Way/2-Position configuration with Normally Closed starting position</li> <li>- Body Material: Brass construction</li> <li>- Operating Pressure Differential: 0 to 185 psi for air/inert gas, 0 to 90 psi for light oil, and 0 to 180 psi for water</li> <li>- Orifice Diameter: 1/8 in</li> <li>- Connections: NPTF inlet and outlet with 1/4 in nominal pipe size and 2-9/16 in center line pipe center size</li> <li>- Coil: Class F insulation, wattage 6.1 W, coil enclosure type F</li> <li>- Electrical Connections: 16 in Leads</li> <li>- NEMA Enclosure Rating: 4X and IP Rating 65</li> <li>- Seal Material: NBR (Buna-N)</li> <li>- Dimensions: Overall length 1-5/16 in, width 1-11/16 in, height 2-31/32 in</li> <li>- Response Time: 1 second</li> <li>- Compliance: Certified to CSA and UL standards</li></ul></p>
