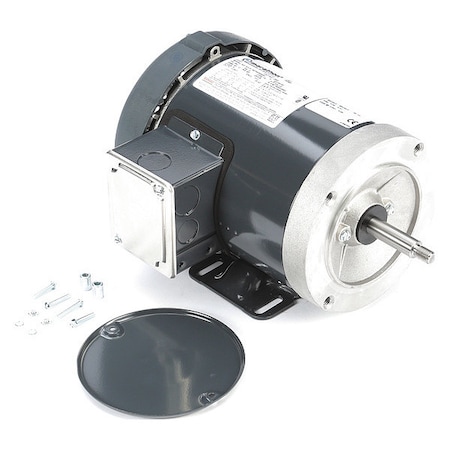

Motor,3-Ph,3/4 HP,208-230/460V,56J

Description

General Purpose Pump Motor, Body Dia. 7.4 in, Bolt Circle Dia. 5 7/8 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 56J, Hz 60/50, Full Load Amps 3.2-3.0/1.60, Full Load Amps @ 50Hz 3.2-3.0/1.60, HP 3/4, HP @ 50Hz 3/4, Includes Drip Cover, Ins. Class B, Length Less Shaft 10 1/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group Standard Efficient
