Dayton

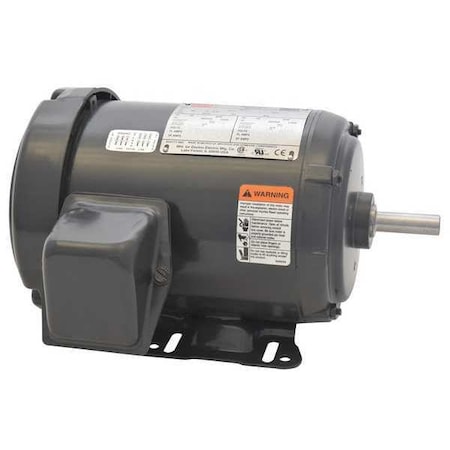

Three-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 3465 Nameplate RPM
SKU: IM-6298400 · MPN: 48ZJ86 · UPC: 190735905166
$581.99
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3465, Frame 56H, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.9/1.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600
Specifications
| Brand | Dayton |
|---|---|
| MPN | 48ZJ86 |
| UPC | 190735905166 |
| Country of Origin | Mexico |
| Unit of Measure | EA |
| Shipping Weight | 31.65 lb |
