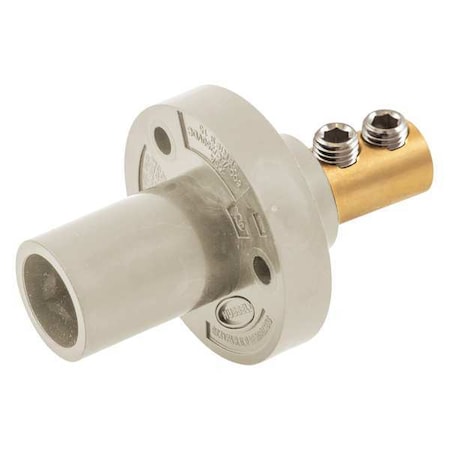

Receptacle, Wht, 8-2, Male, Taper Nose

Description

<p>The HUBBELL Receptacle, Series 15, is a single pole male inlet intended for use in industrial settings where temporary electrical power distribution is needed. It features a taper nose end and accommodates wire sizes from 8 to 2 AWG. The receptacle uses a double set screw termination for secure connections and is constructed with a thermoplastic elastomer housing and brass contacts.</p><br /><br /><p>Key Features of the HUBBELL Receptacle, Series 15:<br><br /></p><ul><br /><li>Amperage Rating: Rated for up to 150 A at 600V AC or 250V DC</li><br /><li>Cable Range: Accepts #8 to #2 AWG conductors</li><br /><li>Connection Type: Double set screw terminal connection</li><br /><li>Material: Housing made from thermoplastic elastomer; contact material is brass</li><br /><li>NEMA Enclosure Ratings: For installation in NEMA Types 12, 3R, and 4X enclosures when installed according to instructions</li><br /><li>Mounting Style: Screw mount with through hole mounting design; includes mounting hardware</li><br /><li>Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements; fits UL1691 standard</li><br /><li>Environmental Conditions: For indoor dry locations; additional protection required if used outdoors or in wet environments.</li></ul><p>&nbsp;</p>
