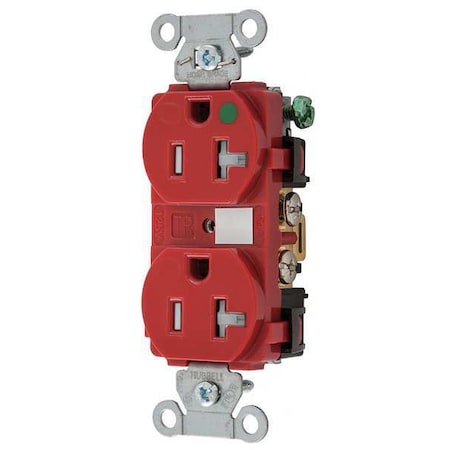

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL 20A Duplex Receptacle 125VAC 5-20R RD is a traditional duplex electrical outlet suitable for use in environments requiring heavy-duty and hospital-grade receptacles. It features tamper-resistant shutters and is rated for 20 amps at 125 volts AC. The receptacle supports both back and side wiring methods, accommodates #12 to #10 AWG copper wire, and includes mounting hardware for flush installation.</p><br /><br /><p>Key Features of the HUBBELL 20A Duplex Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 20 A at 125 VAC</li><br /><li>NEMA Configuration: 5-20R, duplex style with polarized design</li><br /><li>Tamper Resistant: Built-in shutter mechanism</li><br /><li>Wiring Options: Back and side wired; screw terminals accept #12–#10 AWG stranded or solid copper wire</li><br /><li>Material Construction: Nylon face and housing with brass power contacts; galvanized steel mounting strap</li><br /><li>Mounting Type: Flush mount with included zinc-plated steel screws</li><br /><li>Operating Temperature Range: -40°C to +75°C (without impact)</li><br /><li>Standards Compliance: Certified to CSA C22.2 No.42, UL Listed to UL498, Federal Specification W-C-596, NEMA WD-6 compliant</li></ul><p>&nbsp;</p>
