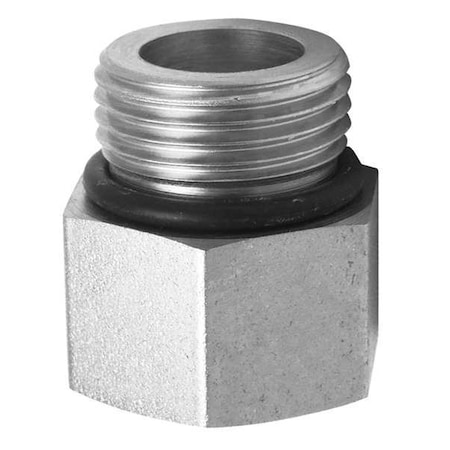

1-5/16-12 x 1" SAE-ORB x FNPT 316 SS Pipe Adapter

Description

<p>The PARKER - 16-1 F5OG-SS is a stainless steel pipe adapter designed to connect two components with different connection types and thread standards. It features a male SAE-ORB connection on Side A with a nominal pipe size of 1 5/16 in and a female NPT connection on Side B with a nominal pipe size of 1 in. This adapter is rated for use with hydraulic fluids within specified parameters and is suitable for use in industrial and process applications requiring corrosion resistance. The fitting is constructed from 316 stainless steel with nitrile seal; installation should comply with standard procedures to ensure leak-tight connections.</p> <p>Key Features: <ul> <li>- Material: 316 Stainless Steel</li> <li>- Application: Hydraulic Fluid</li> <li>- Connection types: SAE-ORB (Male) x FNPT (Female)</li> <li>- Pipe sizes: 1-5/16"-12 (Side A) x 1" (Side B)</li> <li>- Rated for operation at pressures up to 3,600 psi within specified conditions</li> <li>- Rated for operation within the temperature range of 30°F to 250°F</li> <li>- Seal material: Nitrile</li> <li>- Standards: SAE J1926-1, SAE J514</li> <li>- Hex size: 1-5/8 in</li> <li>- Overall length: 1 7/8 in</li> <li>- Includes seal; application of thread sealant should follow standard practices</li> <li>- Number of holes: 2</li> <li>- Color: Silver</li> </ul></p>
