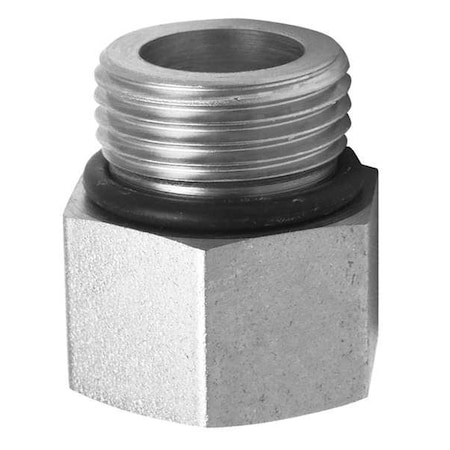

7/16-20 x 1/4" SAE-ORB x FNPT 316 SS Pipe Adapter

Description

<p>The PARKER - 4-1/4 F5OG-SS is a stainless steel pipe adapter designed to join two components with different connection types and sizes, featuring a male SAE-ORB connection on one end and a female NPT connection on the other. Constructed from 316 stainless steel, it provides corrosion resistance and is intended for hydraulic fluid applications. The adapter meets SAE J1926-1 and SAE J514 standards and operates within a temperature range of 30 Degrees to 250 Degrees F with a maximum operating pressure of 6,000 psi.</p> <p>Key Features: <ul><li>- Material: 316 stainless steel.</li> <li>- Connection types: Male SAE-ORB (7/16 in nominal size) to Female NPT (1/4 in nominal size).</li> <li>- Maximum operating pressure: 6,000 psi.</li> <li>- Temperature range: 30 Degrees to 250 Degrees F.</li> <li>- Includes a nitrile seal.</li> <li>- Hex size: 3/4 in across flats for wrenching.</li> <li>- Overall length: 1 1/8 in.</li> <li>- Designed for hydraulic fluid applications.</li></ul></p>
