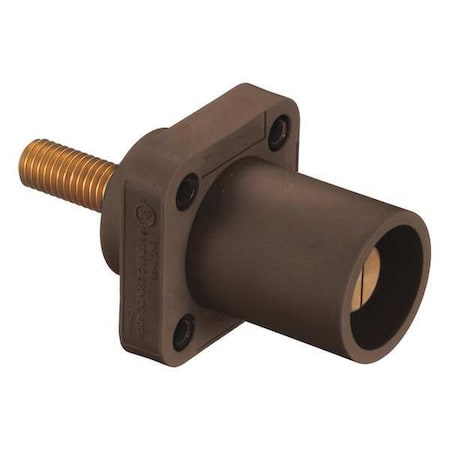

Receptacle,4 to 4/0,Male,Brwn,Taper

Description

<p>The HUBBELL Series 16 Single Pole Receptacle is a male, flanged device rated for use in high ampacity electrical connections. It accommodates cable sizes from 4 AWG to 4/0 AWG and features a straight connection orientation with a taper nose end type. This receptacle is intended for indoor use in dry locations.</p><br /><br /><p>Key Features of the HUBBELL Series 16 Single Pole Male Receptacle:<br><br /></p><ul><br /><li>Amperage Rating: Rated up to 400 A (AC), compatible with both AC/DC applications</li><br /><li>Voltage Rating: Supports up to 600V AC or 250V DC</li><br /><li>Cable Range: Accepts wire sizes from #4 AWG to #4/0 AWG</li><br /><li>Terminal Connection Type: Threaded stud with screw terminal connectivity</li><br /><li>Material Construction: Brass conductor/contact material; thermoplastic elastomer housing</li><br /><li>NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements</li><br /><li>Standards Compliance: UL Listed, cUL Listed, ANSI/NFPA 70 (NEC)</li><br /><li>Mounting Style: Stud type with through hole mounting; includes mounting hardware</li></ul><p>&nbsp;</p>
