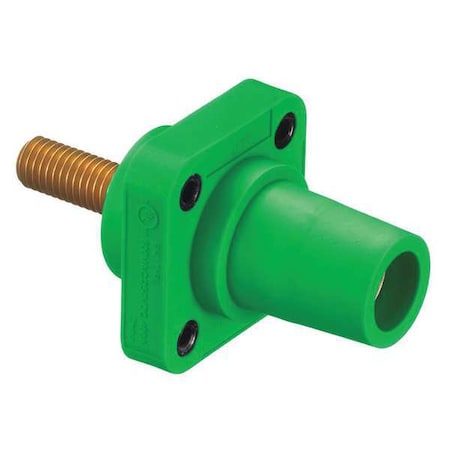

Receptacle, GrnFemale, Stud.Taper Nose

Description

<p>The HUBBELL Receptacle, GrnFemale, Stud.Taper Nose is a single pole, female panel mount receptacle rated for use in applications requiring up to 400A at 600V AC or 250V DC. Compatible with Series 16 devices and rated for up to 400A at 600V AC or 250V DC, this receptacle features a straight connection orientation and utilizes a threaded stud terminal connection. The housing is constructed from thermoplastic elastomer and is intended for installation in dry, indoor environments.</p><br /><br /><p>Key Features of the HUBBELL Receptacle, GrnFemale, Stud.Taper Nose:<br><br /></p><ul><br /><li>Amperage/Voltage Rating: Rated for up to 400A (AC/DC) and 600V AC / 250V DC</li><br /><li>Connection Type: Threaded stud terminal with taper nose design</li><br /><li>Compatible Wire Size: Accepts #4 AWG to #4/0 AWG conductors</li><br /><li>Housing Material: Thermoplastic elastomer construction</li><br /><li>NEMA Enclosure Ratings: Suitable for NEMA Types 12, 3R, and 4X enclosures</li><br /><li>Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements</li><br /><li>Mounting Style: Panel mount with threaded thru-hole hardware</li><br /><li>Pole/Wire Configuration: Single pole device accommodating one wire per unit</li></ul><p>&nbsp;</p>
