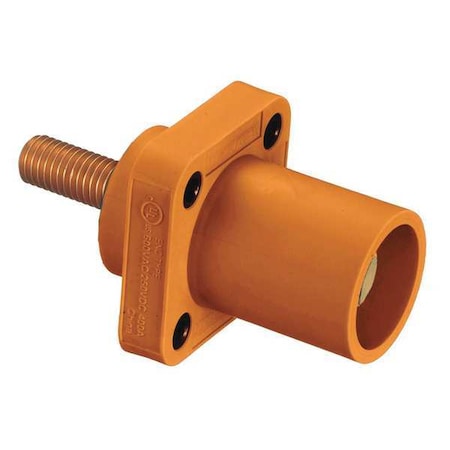

Receptacle, 4-4/0, Male, Org, Stud, Taper

Description

<p>The HUBBELL Series 16 Male Receptacle is a single pole device rated for use in temporary power distribution systems requiring high ampacity electrical connections. This receptacle features a straight, taper nose design with threaded stud terminals and accommodates wire sizes from #4 AWG to 4/0 AWG. It is constructed with a thermoplastic elastomer housing and brass contacts, intended for use in indoor dry locations; additional protection may be required for other environments.</p><br /><br /><p>Key Features of the HUBBELL Series 16 Male Receptacle:<br><br /></p><ul><br /><li>Amperage Rating: Rated for up to 400 A (300/400A AC/DC)</li><br /><li>Voltage Rating: Supports up to 600V AC or 250V DC</li><br /><li>Cable Range: Accepts wire sizes from #4 AWG to 4/0 AWG</li><br /><li>Terminal Connection Type: Threaded stud connection with screw terminals</li><br /><li>Material Construction: Brass conductor/contact; thermoplastic elastomer housing</li><br /><li>NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements</li><br /><li>Standards Compliance: Listed under ANSI/NFPA 70, NEC, UL/cUL standards including UL1691 compatibility</li><br /><li>Mounting Style: Through hole mounting with included hardware; flange shape is square</li><br /><li>Device Orientation &amp; Gender: Straight orientation; male configuration; single pole style (taper nose)</li></ul><p>&nbsp;</p>
