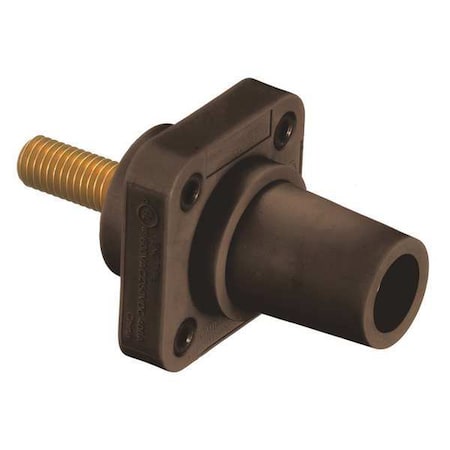

Receptacle, 600VAC/250VDC, Brown, Female

Description

<p>The HUBBELL Series 16 Single Pole Receptacle is a female, panel-mount device rated for use in indoor dry locations, with additional protection required for other environments. Rated for up to 400A and 600V AC/250V DC, this receptacle features a straight connection orientation with a stud-type, threaded terminal suitable for #4 AWG to 4/0 AWG wire sizes. The housing is constructed from thermoplastic elastomer and the contact material is brass, compatible with Series 16 devices.</p><br /><br /><p>Key Features of the HUBBELL Series 16 Single Pole Female Receptacle:<br><br /></p><ul><br /><li>Amperage Rating: Up to 400 A (300/400A AC/DC)</li><br /><li>Voltage Rating: Rated for 600V AC and 250V DC</li><br /><li>Connection Type: Stud type with threaded stud terminal; single pin connection</li><br /><li>Wire Accommodation: Accepts #4 AWG to #4/0 AWG conductors</li><br /><li>Mounting Style: Through hole mounting; panel mount design</li><br /><li>NEMA Enclosure Ratings: Types 12, 3R, and 4X – intended for use within the environmental conditions defined by NEMA Types 12, 3R, and 4X</li><br /><li>Material Construction: Thermoplastic elastomer housing with brass contacts</li><br /><li>Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements; fits UL1691 standard</li></ul><p>&nbsp;</p>
