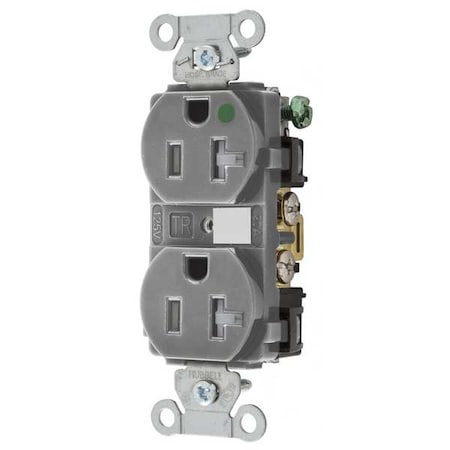

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL - 20A Duplex Receptacle 125VAC 5-20R GY is a traditional duplex electrical outlet rated as hospital grade and suitable for use in demanding environments. It features a tamper-resistant; integrated shutters help prevent unintended access to the contacts. It supports both back and side wiring methods, accommodating #12 to #10 AWG stranded or solid copper wire. Its construction includes a high impact resistant nylon face with an area for circuit identification marking, as well as a galvanized steel mounting strap.</p><br /><br /><p>Key Features of the HUBBELL - 20A Duplex Receptacle:<br><br /></p><ul><br /><li>Tamper Resistant: Integrated shutters help prevent unintended access to the contacts.</li><br /><li>Amperage/Voltage Rating: Rated for 20 A at 125 VAC; suitable for circuits requiring these specifications.</li><br /><li>Wiring Options: Supports both back and side wired connections using screw terminals; accommodates #12–#10 AWG copper wire.</li><br /><li>Material Construction: Nylon face and housing constructed with nylon face and housing; brass power and ground contacts</li><br /><li>Mounting Type: Flush mount installation with included zinc plated steel screws and galvanized steel strap.</li><br /><li>Certification &amp; Standards: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498.</li><br /><li>Dielectric Strength &amp; Flammability: Withstands minimum dielectric voltage of 2,000V; flammability rated UL94 V-2.</li><br /><li>Operating Temperature Range: Rated for operation within a temperature range of -40°C to +75°C (without impact).</li></ul><p>&nbsp;</p>
