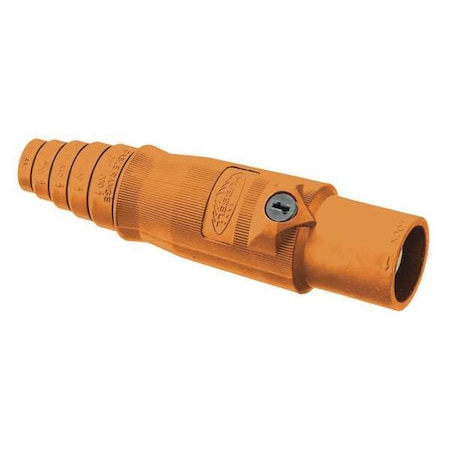

Connector,3R, 4X, 12,Male,Org,2/0 to 4/0

Description

<p>The HUBBELL Connector, Series 16, is a single pole male connector intended for use in temporary electrical power distribution. It accommodates cable sizes from 2/0 to 4/0 AWG and features a taper nose end with double set screw terminal connections. The housing is constructed from thermoplastic elastomer and the contact material is brass, rated for operation at currents up to 400 A and voltages up to 600V AC or 250V DC.</p><br /><br /><p>Key Features of the HUBBELL Series 16 Single Pole Male Connector:<br><br /></p><ul><br /><li>Amperage Rating: Rated for up to 400 A (AC/DC)</li><br /><li>Cable Range: Accepts wire sizes from 2/0 AWG to 4/0 AWG</li><br /><li>Contact Material: Brass single cam contacts</li><br /><li>Terminal Connection Type: Double set screw design</li><br /><li>Housing Material: Thermoplastic elastomer construction</li><br /><li>NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12 requirements</li><br /><li>Voltage Rating: Up to 600V AC / 250V DC maximum</li><br /><li>Industry Standards: UL Listed; cUL Listed; ANSI/NFPA70; National Electric Code (NEC); UL Enclosure Types compliance</li><br /><li>Compatible With: Series 15, Series 16, Insulgrip devices</li></ul><p>&nbsp;</p>
