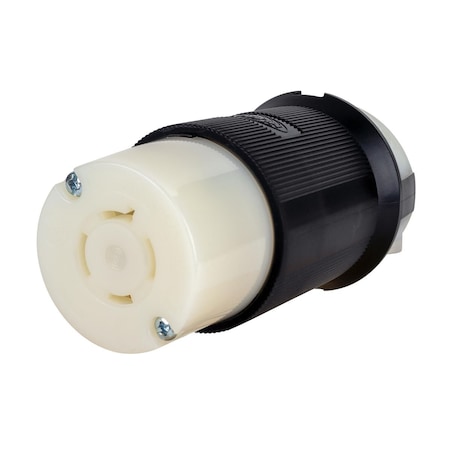

Locking Connector, L14-20R, 20 A, 125/250V AC, Three Phase, 3 Pole, Spring Clamp Terminals

Description

<p>The HUBBELL Locking Connector is a three-phase, four-wire connector designed for indoor industrial electrical applications. It features the EdgeConnect™ screwless termination system, allowing users to insert wire and secure connections without tools by pressing down a plunger. The spring clamp terminals provide reliable terminations and help prevent strand relaxation over time.</p><br /><br /><p>Key Features of the HUBBELL Locking Connector:<br><br /></p><ul><br /><li>Contact Material: Brass contacts for electrical conductivity.</li><br /><li>Housing Material: nylon housing; see specifications for application suitability.</li><br /><li>NEMA Configuration: L14-20R locking configuration with straight connection orientation.</li><br /><li>Current/Voltage Rating: Rated for 20 A at 125/250V AC; supports up to 2 hp motors per manufacturer specifications.</li><br /><li>Wire Size Compatibility: Accepts wire sizes from 16 AWG to 8 AWG via spring clamp terminals; funnel-shaped entry aids termination.</li><br /><li>Cable Diameter Range: Suitable for cable diameters between 0.35 in and 1.15 in; overall outside diameter is 3.86 in with an overall length of 2.33 in.</li><br /><li>Operating Temperature Range: Rated for operation from -40°C to +75°C in dry, indoor locations (IP20 rated).</li><br /><li>Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, and UL 498 requirements; UL94 HB flammability rating.</li></ul><p>&nbsp;</p>
