Marathon

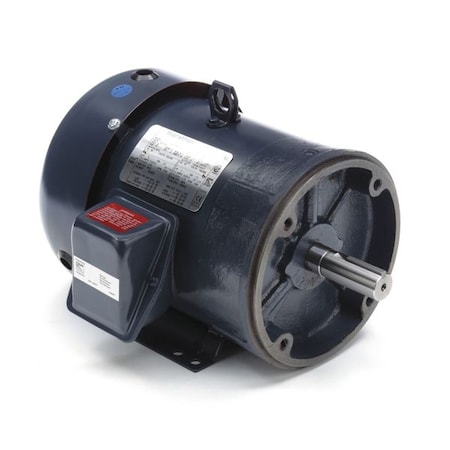

Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 230/460V AC Voltage, 1762 rpm Nameplate RPM
SKU: IM-5820884 · MPN: 182TTFBD6028
$683.99
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1762 rpm, Frame 182TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.0/4.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800
Specifications
| Brand | Marathon |
|---|---|
| MPN | 182TTFBD6028 |
| Country of Origin | Mexico |
| Unit of Measure | EA |
| Shipping Weight | 95.0 lb |
