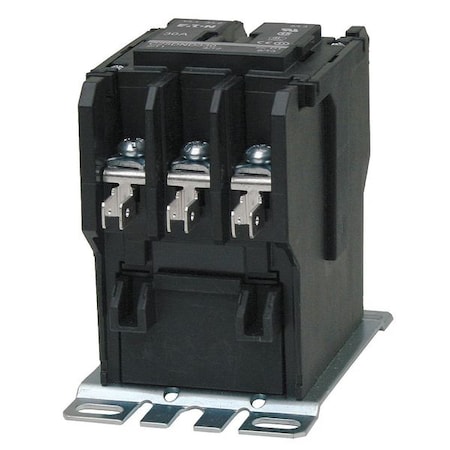

Definite Purpose Magnetic Contactor, 24V AC, 3 P, Non-Reversing, 3 Phase, Quick Connect

Description

<p>The EATON - C25DND330T is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.</p><p><br/><ul><li>Action: Non-Reversing – The contactor functions with a constant current flow direction.</li><li>Auxiliary Contact Module Capacity: 4 – Provides flexibility in managing multiple electrical loads or signals.</li><li>Coil Voltage: 24V AC – Specifies the voltage range required for effective engagement or disengagement of its electrical circuit.</li><li>Depth: 3.75 in – Indicates how far it extends into the mounting surface or enclosure.</li><li>Frequency: 50/60 Hz – Rated for operation within this specified frequency range which may impact compatibility with different power systems.</li><li>Full Load Amps-Inductive & Resistive: 30 A & 40 A respectively– Specified maximum current for continuous operation under normal conditions. Exceeding these limits may result in overheating or potential damage when controlling inductive loads such as motors or transformers and resistive/heating loads respectively</li><li>Horsepower @ Single Phase -120V AC & @ Three Phase -480V AC 2 hp &15 hp respectively– Indicates the maximum motor power it is rated to control at these respective voltages. Actual performance may vary based on specific usage conditions.</li><li>Input Control Type: 2-Wire system uses two wires for power supply and control</li></ul></p>
