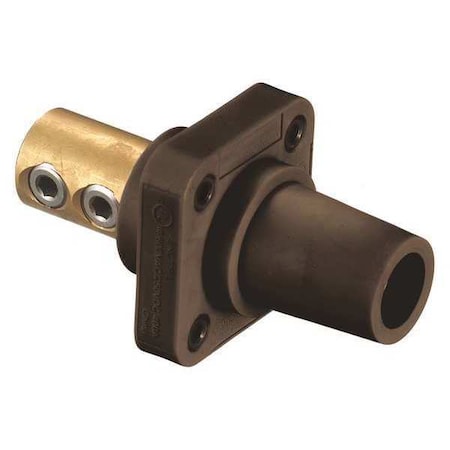

Receptacle, Brown, Female, Double Set Screw

Description

<p>The HUBBELL Receptacle, Brown, Female, Double Set Screw is a single pole panel mount receptacle rated for use in applications requiring up to 400 A at 600V AC or 250V DC. This female device features a double set screw terminal connection and is compatible with Series 16 connectors. It accommodates wire sizes from #4 AWG to 4/0 AWG and is intended for installation in indoor dry locations; consult applicable codes and requirements if additional protection is needed.</p><br /><br /><p>Key Features of the HUBBELL Receptacle, Brown, Female, Double Set Screw:<br><br /></p><ul><br /><li>Amperage Rating: Rated for up to 400 A at 600V AC or 250V DC</li><br /><li>Cable Range: Accepts #4 AWG to 4/0 AWG conductors</li><br /><li>Terminal Connection Type: Double set screw termination</li><br /><li>Material: Housing made from thermoplastic elastomer; contact material is brass</li><br /><li>NEMA Enclosure Ratings: Rated for NEMA Types 3R, 4X, and 12 environments</li><br /><li>Mounting Style: Panel mount with through hole mounting hardware (threaded thru-hole)</li><br /><li>Connection Orientation: Straight taper nose design; fits Series 16 male connectors</li><br /><li>Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements</li></ul><p>&nbsp;</p>
