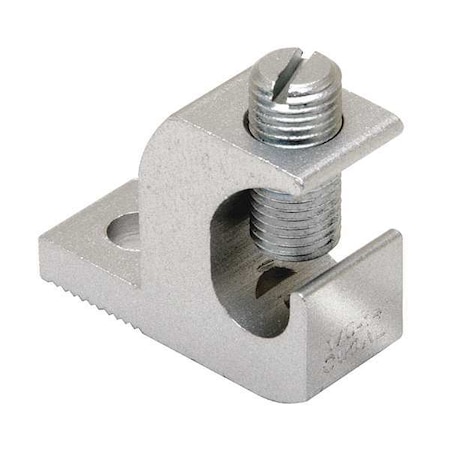

Mechanical Lug, 1 Conductor, 1/4 in Stud, Aluminum

Description

Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.28 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Tongue Length 0.8 in, Tongue Width 0.63 in, Tongue Thickness 0.19 in, Connector Type Lay-In Lug, Standards CSA Certified, UL Listed
