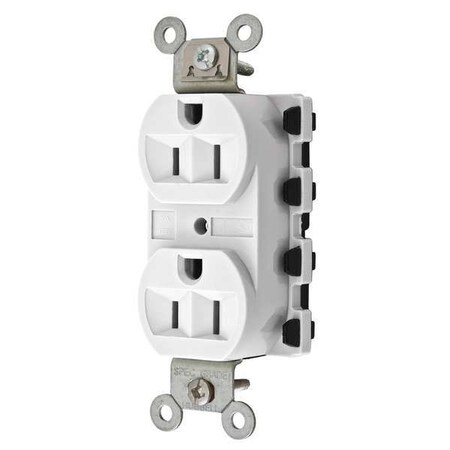

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL 15A Duplex Modular Receptacle 125VAC 5-15R WH is a flush-mount duplex receptacle intended for modular wiring installations.</p><br /><br /><p>Key Features of the HUBBELL 15A Duplex Modular Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 15 A, 125 VAC operation</li><br /><li>NEMA Configuration: NEMA 5-15R duplex outlet</li><br /><li>Wiring Method: Modular back-wired connection suitable for #12 AWG wire</li><br /><li>Mounting Type: Flush mount with included mounting hardware; single gang configuration</li><br /><li>Material Construction: Nylon face and housing; brass contacts; galvanized steel mounting strap</li><br /><li>Operating Temperature Range: -40°C to +75°C (without impact)</li><br /><li>Dielectric Strength: Withstands minimum of 2,000V dielectric voltage</li><br /><li>AFCI/GFCI/Tamper Resistant/Surge Protection: Not applicable or not present on this model</li><br /><li>Certifications &amp; Standards: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6, UL498 File E2186 compliant</li></ul><p>&nbsp;</p><br /><br /><p>The HUBBELL 15A Duplex Modular Receptacle features SNAPConnect® technology to support connectorized installation during rough-in and snap-in connection after wall completion.</p>
