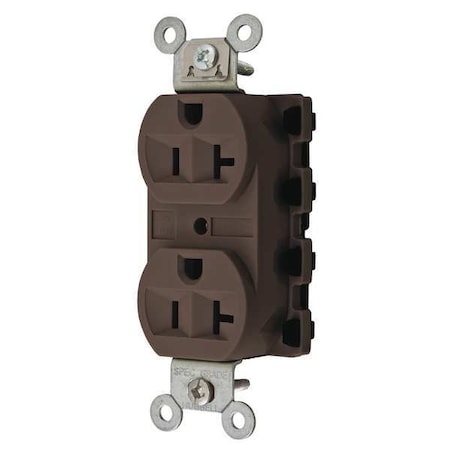

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL 20A Duplex Modular Receptacle 125VAC 5-20R BN is a suitable for modular wiring installations. Featuring SNAPConnect® technology, this device incorporates SNAPConnect® technology that permits the connector to be installed during rough-in and then attached after wall completion. The receptacle is rated for 20 amps at 125 volts AC and features a Finder Groove Face style; straight blade configuration.</p><br /><br /><p>Key Features of the HUBBELL - 20A Duplex Modular Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 20 A, 125 VAC operation</li><br /><li>NEMA Configuration: 5-20R duplex outlet with polarized, grounded design</li><br /><li>Wiring Method: Modular back-wired connection supports #12 AWG wire size</li><br /><li>Material Construction: Nylon face and housing; brass contacts; galvanized steel mounting strap</li><br /><li>Mounting Type: Flush mount with included grounding clip, staple, and mounting hardware</li><br /><li>Dielectric Strength &amp; Flammability: Withstands minimum of 2,000V dielectric voltage; UL94 V-2 flammability rating</li><br /><li>Operating Temperature Range: -40°F to +167°F (without impact)</li><br /><li>Certifications &amp; Standards: CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6 compliant; UL Listed to UL498 File E2186</li></ul><p>&nbsp;</p>
