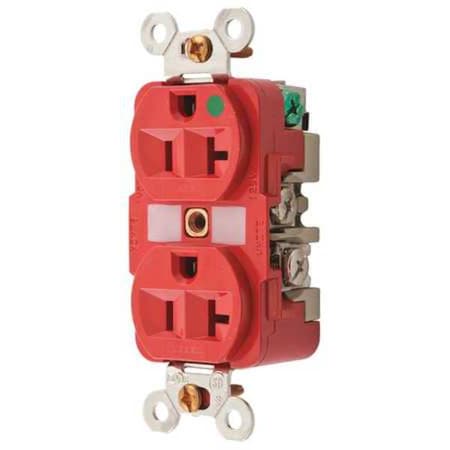

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL 20A Duplex MRI Receptacle 125VAC 5-20R RD is a hospital grade, traditional duplex receptacle suitable for installation in medical and MRI lab environments. It features all non-ferrous construction to prevent magnetic interference, with a flush mount design suitable for indoor installations. The receptacle supports both back and side wiring methods using screw terminals, accommodating #12 to #10 AWG copper wire.</p><br /><br /><p>Key Features of the HUBBELL 20A Duplex MRI Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 20 A at 125 VAC</li><br /><li>NEMA Configuration: 5-20R duplex outlet with polarized, grounded connections (2-pole, 3-wire)</li><br /><li>Construction: Non-ferrous materials; nickel-plated brass contacts and integral ground strap</li><br /><li>Hospital Grade: Meets Federal Specification W-C-596 and UL Hospital Grade requirements</li><br /><li>Impact Resistant: Deep nylon face</li><br /><li>Grounding System: Four-point grounding system</li><br /><li>Wiring Method: Back or side wired screw terminals compatible with stranded or solid copper wire (#12–#10 AWG)</li><br /><li>Operating Temperature Range: -40°F to +167°F (maximum continuous temperature up to 75°C)</li><br /><li>Includes mounting hardware; wall plate or weatherproof cover included as specified by application needs</li></ul><p>&nbsp;</p>
