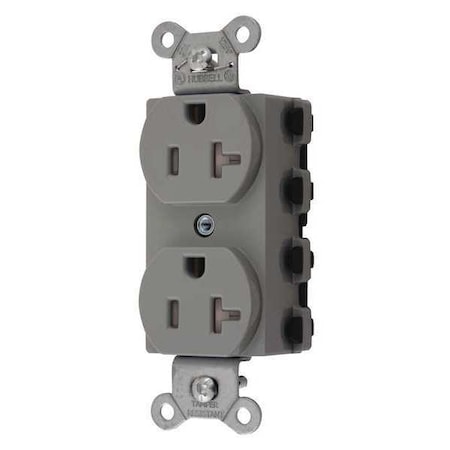

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL SNAPConnect® 5-20R Receptacle is a 20 amp, 125V AC flush mount duplex outlet suitable for use in commercial settings. This modular receptacle includes connectorized wiring to facilitate installation and device replacement, utilizing a snap-in terminal system in place of traditional pigtail wiring. The unit is tamper-resistant; intended for indoor use in dry locations.</p><br /><br /><p>Key Features of the HUBBELL SNAPConnect® 5-20R Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 20 A, 125V AC operation</li><br /><li>NEMA Configuration: Standard duplex outlet with NEMA 5-20R configuration</li><br /><li>Wiring Method: Modular back-wired connection supports #12 AWG wire size</li><br /><li>Mounting Type: Flush mount design fits standard single-gang boxes</li><br /><li>Tamper Resistant: Includes built-in tamper resistance</li><br /><li>Material &amp; Construction: Nylon housing with brass contacts; extra heavy duty specification grade</li><br /><li>Operating Temperature Range: -40°F to 167°F (-40°C to +75°C)</li><br /><li>Certifications &amp; Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-596, NEMA WD-6 compliant</li></ul><p>&nbsp;</p>
