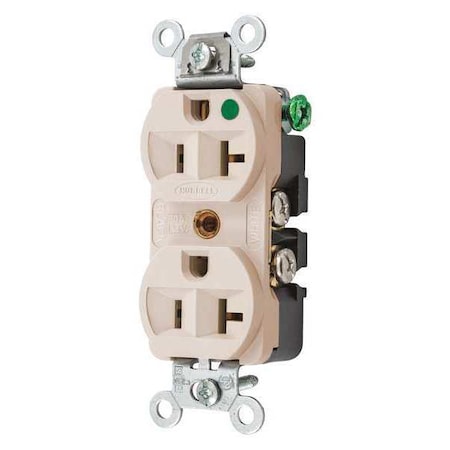

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL 5-20R Hospital Grade Duplex Receptacle is a flush mount, 20A, 125V AC outlet suitable for installation in commercial and hospital-grade environments. This standard duplex receptacle features a slender, compact design with an impact-resistant finder groove face and triple wipe brass contacts for consistent electrical contact. It accommodates both back and side wiring methods using screw terminals and supports #12 to #10 AWG stranded or solid copper wire.</p><br /><br /><p>Key Features of the HUBBELL 5-20R Hospital Grade Duplex Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 20A at 125V AC</li><br /><li>NEMA Configuration: 5-20R, traditional duplex style</li><br /><li>Mounting Type: Flush mount with included mounting hardware</li><br /><li>Wiring Method: Back and side wired screw terminals; accepts #12–#10 AWG copper wire</li><br /><li>Material Construction: Impact-resistant nylon housing; reinforced PET base; thermoplastic components</li><br /><li>Contact Material: Brass power contacts with nickel plating for maintained specified contact pressure</li><br /><li>Grounding System: Four-point grounding system with stainless steel auto ground clip and silicon bronze ground screws</li><br /><li>Performance Ratings: Withstands dielectric voltage of minimum 2,000V; UL94 V-0 flammability rating; certified for current interruption at the rated current</li><br /><li>Operating Temperature Range: -40°C (w/o impact) to +75°C continuous operation</li><br /><li>Certifications &amp; Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), NEMA WD-6 compliant, Federal Specification W-C-596G Hospital Grade Fed. Spec.</li></ul><p>&nbsp;</p>
