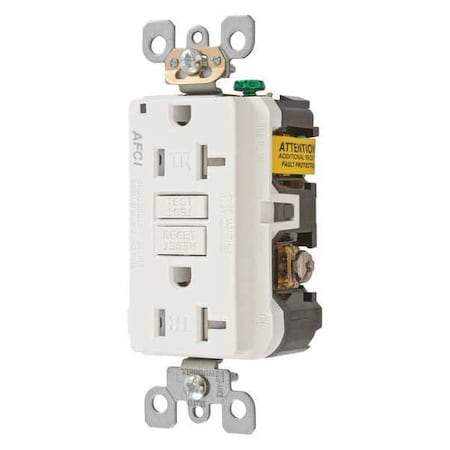

Receptacle, 5-20R, 20 A, 2 Pole, 3 Wire, Grounded

Description

<p>The HUBBELL 5-20R Duplex Receptacle is a flush mount, tamper-resistant electrical outlet rated for 20 amps and 125V AC. Suitable for use in commercial environments, this standard duplex receptacle includes arc fault circuit interrupter (AFCI) technology that disconnects power when an arc is detected. The unit supports both back and side wiring methods with screw terminals and includes a nylon housing.</p><br /><br /><p>Key Features of the HUBBELL 5-20R Duplex Receptacle:<br><br /></p><ul><br /><li>AFCI: Integrated Arc Fault Circuit Interrupter designed to disconnect power upon detection of electrical arcs.</li><br /><li>Amperage/Voltage: Rated for 20 A and 125V AC operation.</li><br /><li>Mounting Type: Flush mount design suitable for single-gang installations.</li><br /><li>NEMA Configuration: Standard NEMA 5-20R configuration with polarized, grounded connections.</li><br /><li>Tamper Resistant: Built-in tamper resistance feature</li><br /><li>Material: Nylon construction</li><br /><li>Wiring Method: Accepts both back and side wiring via screw terminals.</li><br /><li>Operating Temperature Range: Suitable for use from -30°F to 150°F (-34°C to 66°C).</li><br /><li>Standards Compliance: Meets UL498, UL1699A E366570, CSA C22.2 No.42, NEMA WD-6 requirements.</li></ul><p>&nbsp;</p>
