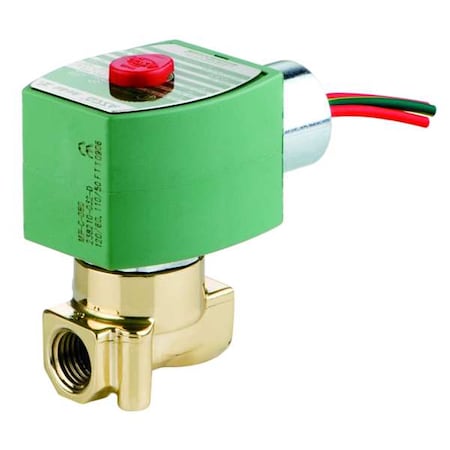

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Flow, Brass

Description

<p>The ASCO 8262H208 is a direct-acting, normally closed solenoid valve designed for automatic control of liquids and gases. It features a brass body and provides a two-way, two-position direct-acting valve; Cv: 0.73. The valve supports both horizontal and vertical mounting orientations and accommodates NPTF inlet and outlet connections with a nominal pipe size of 1/4 inch. Ambient temperature range: 14°F to 140°F. Fluid temperature range: up to 180°F.</p> <p>Key Features: <ul><li>- Valve Type: Two-way, two-position direct-acting; Cv: 0.73</li> <li>- Valve Design: 2-Way/2-Position, Normally Closed</li> <li>- Body Material: Brass with NBR seal material</li> <li>- Operating Pressure Differential: 0 to 100 psi for air/inert gas, light oil, and water</li> <li>- Coil Included: Yes, with insulation class F and wattage of 10.1 W</li> <li>- Electrical Connections: 1/2 in Conduit with 18 in Leads, 120V AC, 50/60 Hz frequency</li> <li>- Coil Enclosure: Watertight, without junction box</li> <li>- Response Time: 1 second</li> <li>- Dimensions: Length 1-9/16 in, Width 1-15/16 in, Height 3-1/8 in</li> <li>- Orifice Diameter: 7/32 in, Coefficient of Volume (Cv): 0.73</li> <li>- IP Rating: 66; NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X</li> <li>- Includes Seal: Yes</li> <li>- Thread Type: NPT</li></ul></p>
