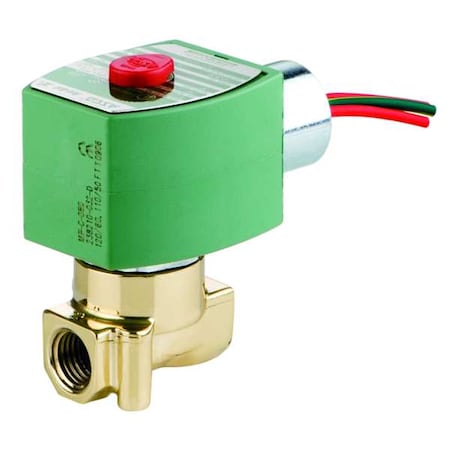

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 24V DC, High Flow, Brass, NBR

Description

<p>The ASCO 8262H202 is a 2-way, 2-position direct acting solenoid valve with a normally closed configuration designed for controlling the flow of air, inert gases, light oil, and water. It features a brass body and an orifice diameter of 5/32 inch. The valve includes a coil with Class H insulation operating at 24V DC and consumes 10.1 watts. The valve is rated for horizontal or vertical mounting. IP66 rating provides dust and water protection; environmental suitability beyond IP66 is not specified. It is certified to CSA and UL standards.</p> <p>Key Features: <ul><li>- Valve Design: 2-Way/2-Position, Normally Closed</li> <li>- Body Material: Brass with NBR seal</li> <li>- Operating Voltage: 24V DC, 10.1 W coil power consumption</li> <li>- Media Compatibility: Air, Inert Gases, Light Oil, Water</li> <li>- Operating Pressure Differential: 0 to 65 psi air/inert gas, 0 to 63 psi light oil and water</li> <li>- Temperature Ratings: Ambient 14°F to 140°F; Fluid Maximum 180°F</li> <li>- Connections: Inlet and Outlet NPTF threads, Nominal Pipe Size 1/4 in</li> <li>- Mounting Orientation: Horizontal or Vertical</li> <li>- Coil Enclosure: IP66-rated for ingress protection; without junction box; Electrical Connections: 1/2 in Conduit with 18 in Leads</li> <li>- Dimensions (HxLxW): 3-1/8 in x 1-9/16 in x 1-15/16 in</li> <li>- Response Time: 1 second</li> <li>- Environmental and Construction Ratings: IP66; protection against dust and water; does not imply suitability for corrosive or hazardous environments beyond IP66</li> <li>- Standards: CSA, UL Listed</li></ul></p>
