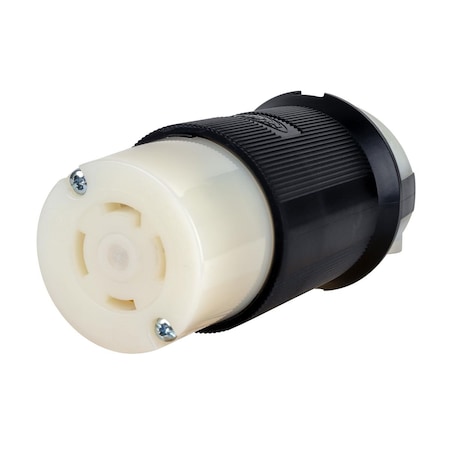

Locking Connector, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Spring Clamp Terminals

Description

<p>The HUBBELL Locking Connector is a screwless electrical connector designed for wire termination in indoor, dry industrial settings. Featuring the EdgeConnect™ system, it allows users to insert wires and secure them by pressing a plunger; tool-free operation. The connector accommodates 8–16 AWG wire sizes and supports single-phase applications up to 30 A at 125/250V AC with a NEMA L14-30R configuration.</p><br /><br /><p>Key Features of the HUBBELL Locking Connector:<br><br /></p><ul><br /><li>Wire Connection Type: Spring clamp terminals allow for tool-free terminations.</li><br /><li>NEMA Configuration: L14-30R; intended for use with applications requiring the L14-30R configuration.</li><br /><li>Current &amp; Voltage Rating: Rated for 30 A and 125/250V AC single-phase circuits.</li><br /><li>Wire Size Compatibility: Accepts wire sizes from 8 AWG to 16 AWG.</li><br /><li>Cable Diameter Range: Accepts cable diameters from 0.35 in to 1.15 in.</li><br /><li>Operating Temperature Range: Operating temperature range: -40°C to +75°C.</li><br /><li>Housing Material &amp; Resistance Properties: Nylon housing provides impact resistance; UL94 HB flammability rating.</li><br /><li>Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, and UL498 standards.</li><br /><li>Ingress Protection (IP): Rated IP20 for indoor use only; not shrouded or midget locking type.</li></ul><p>&nbsp;</p>
