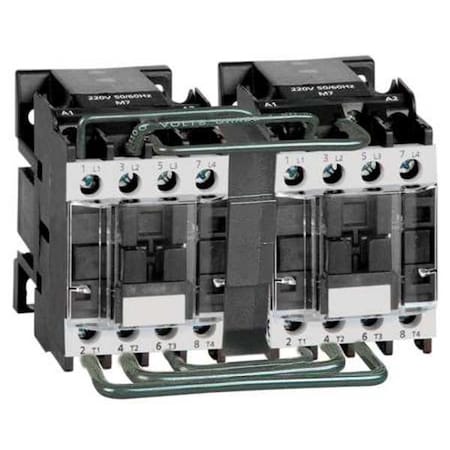

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Reversing, Screw

Description

<p>The DAYTON - IEC Magnetic Contactor is a reversing type contactor that operates on a coil voltage of 24V AC. It's designed with an auxiliary contact configuration of 1NO (Normally Open), which means it allows current to flow when the relay is not energized. This product does not come with an enclosure and has no embedded surge suppressor. The magnetic contactor can handle full load amps-inductive up to 9 A, and full load amps-resistive up to 20 A.</p> <p>Key features include: <li>- Reversing action: Allows for changing the direction of motor rotation.</li> <li>- Coil Voltage: Operates at a coil voltage of 24V AC.</li> <li>- Auxiliary Contact Form: Comes with one normally open (1NO) auxiliary contact form.</li> <li>- Load Capacity: Can handle inductive loads up to 9A and resistive loads up to 20A.</li> <li>- Horsepower Compatibility: Compatible with a range of horsepower ratings from single phase power supply (1/2 hp at 120V, and 1hp at both 230V &240V) to three-phase power supply (2hp at both 208V &240V,5hp at480v,and7½ hpat575v).</li> <li>- Terminal Connection Type: Features screw-type terminal connections for secure wiring installation.</li> <li>- Standards Compliance: This product is UL Listed indicating compliance with certain safety standards.</li></p>
