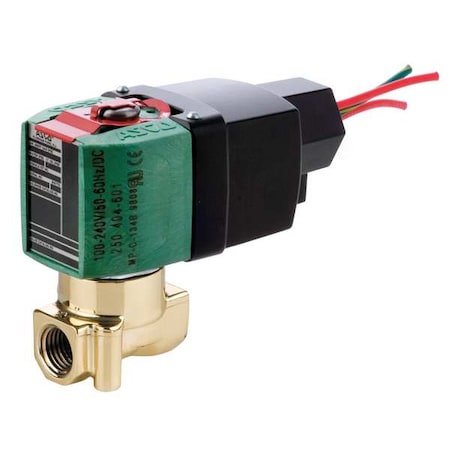

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 100V to 240V AC/DC, High Flow

Description

<p>The ASCO 8262R232 is a direct-acting, normally closed solenoid valve for controlling flow of air, inert gases, light oil, and water. It features a 2-way/2-position valve design; flow characteristics: Cv 0.35; orifice diameter 1/8 in. The valve body is constructed of brass and uses NBR seals, with media temperature range: up to 180°F; ambient temperature range: -13°F to 131°F. This valve includes a coil with Class H insulation, operates across 100V to 240V AC/DC at 60 Hz, and has a watertight coil enclosure without a junction box.</p> <p>Key Features: <ul><li>- Valve Type: Direct-acting, normally closed solenoid valve for controlling flow of air, inert gases, light oil, and water</li> <li>- Body Material: Brass with NBR (Buna-N) seals</li> <li>- Connection: 1/4 in NPTF inlet and outlet, center line pipe size 2-3/4 in</li> <li>- Electrical: 100V to 240V AC/DC at 60 Hz; coil insulation Class H; 2 W power consumption</li> <li>- Coil Enclosure: Watertight, without junction box; electrical connections via 1/2 in conduit with 18 in leads</li> <li>- Flow Performance: Cv of 0.35; orifice diameter 1/8 in</li> <li>- Operating Pressure Differential: Maximum 540 psi air/inert gas, 360 psi light oil, 395 psi water; minimum 0 psi for all listed media</li> <li>- Environmental rating: IP66</li> <li>- Dimensions: Overall length 3-31/32 in, height 3-1/16 in, width 1-7/8 in</li> <li>- Mounting Orientation: Horizontal or Vertical</li> <li>- Standards: CE, CSA, UL Listed; IP Rating 66</li> <li>- Includes: Solenoid coil and sealing components</li></ul></p>
