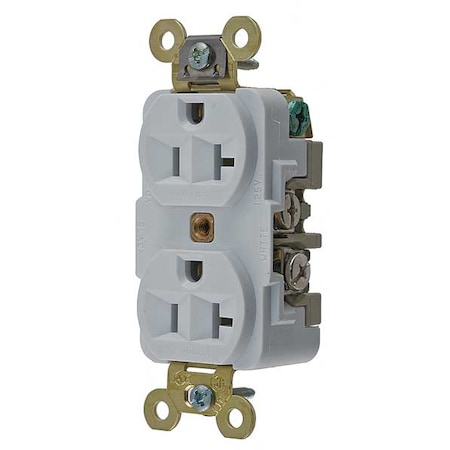

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH is a traditional duplex electrical outlet suitable for specification grade applications. This receptacle features a standard NEMA 5-20R configuration, supports both back and side wiring methods, and accommodates #14 to #10 AWG copper wire. It is rated for 20 amps at 125 volts AC and includes grounding provisions with a one-piece brass integral ground strap. The device is suitable for indoor dry locations, including industrial environments.</p><br /><br /><p>Key Features of the HUBBELL 20A Duplex Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage Rating: Rated for 20 A, 125 VAC operation</li><br /><li>NEMA Configuration: Standard NEMA 5-20R duplex outlet</li><br /><li>Wiring Method: Back and side wired screw terminals support #14–#10 AWG copper conductors</li><br /><li>Material Construction: Nylon face with reinforced PET base; nickel-plated brass contacts</li><br /><li>Mounting Type: Flush mount design with included mounting hardware</li><br /><li>Grounding: Grounded with stainless steel auto ground clip and one-piece brass ground strap</li><br /><li>Operating Temperature Range: -40°C to +75°C (without impact)</li><br /><li>Certification &amp; Standards Compliance: UL Listed to UL498, CSA C22.2 No.42 certified, Federal Specification W-C-596 compliant, NEMA WD-6 compliant</li><br /><li>Dielectric Strength &amp; Flammability Ratings: Withstands minimum dielectric voltage of 2,000V; top flammability rating UL94V-2/base UL94V-0 or better</li></ul><p>&nbsp;</p>
