Dayton

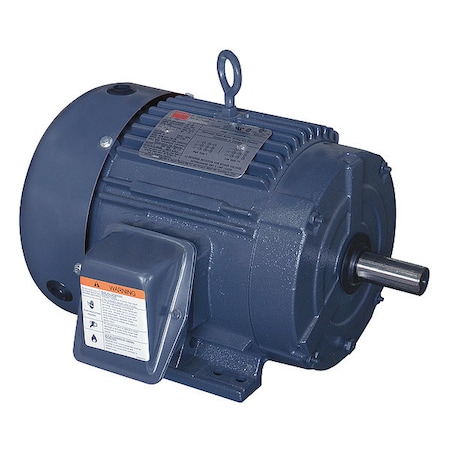

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 3500 Nameplate RPM
SKU: IM-3399505 · MPN: 194146.00 · UPC: 190735227596
$1,851.59
+ $100.00 freight surcharge (per unit)
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3500, Frame 184T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12/6.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Specifications
| Brand | Dayton |
|---|---|
| MPN | 194146.00 |
| UPC | 190735227596 |
| Country of Origin | ZZ |
| Unit of Measure | EA |
| Shipping Weight | 116.0 lb |
