Dayton

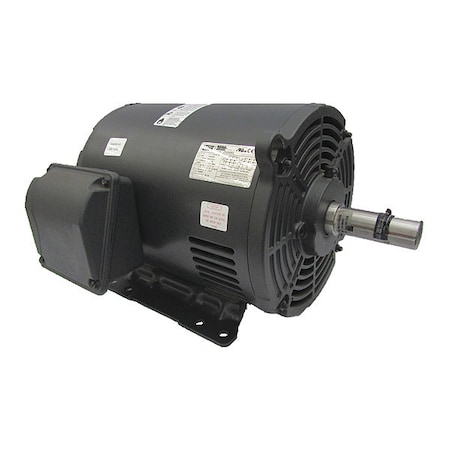

Three-Phase General Purpose Motor, 10 HP, 254/6U Frame, 230/460V AC Voltage, 1,770 Nameplate RPM
SKU: IM-3398123 · MPN: 2N986 · UPC: 190735228340
$1,814.39
+ $70.00 freight surcharge (per unit)
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 10 HP, Nameplate RPM 1,770, Frame 254/6U, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 25.7/12.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Specifications
| Brand | Dayton |
|---|---|
| MPN | 2N986 |
| UPC | 190735228340 |
| Country of Origin | Mexico |
| Unit of Measure | EA |
| Shipping Weight | 219.0 lb |
