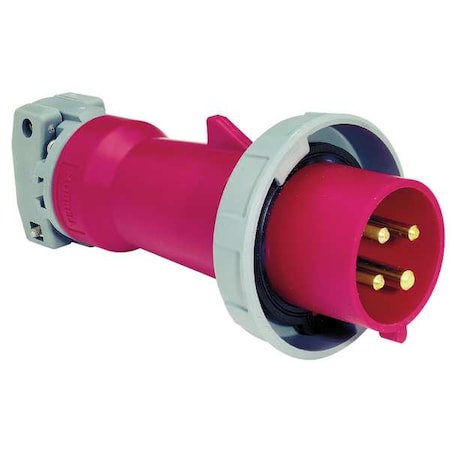

Watertight Pin & Sleeve Plug, 100 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red, NEMA 4X

Description

<p>The HUBBELL IEC Pin and Sleeve Plug is a suitable for industrial and commercial environments. Rated for 100A and 480V AC, this three-phase, four-wire plug includes a non-metallic housing made from Zytel 801 nylon. The device includes solid one-piece pins for reliable contact, a gasketed sealing ring; rated IP67, to maintain watertight integrity, and external cord grips for strain relief. It meets multiple standards including UL IEC 60309-1, CSA Certified C22.2 No. 182.1, and carries an IP67/NEMA 4X rating.</p><br /><br /><p>Key Features of the HUBBELL IEC Pin &amp; Sleeve Plug:<br><br /></p><ul><br /><li>Current/Voltage Rating: Rated for 100A at 480V AC (three-phase)</li><br /><li>Body Material: Constructed from impact-resistant Zytel 801 nylon</li><br /><li>Watertight Design: Gasketed sealing ring; rated IP67</li><br /><li>NEMA Enclosure Rating: Suitable for NEMA Type 4X applications</li><br /><li>Cable Accommodation: Accepts wire sizes from 3 AWG to 1/0 AWG; cable diameter up to 1.065 in</li><br /><li>Operating Temperature Range: -40°C to +75°C</li><br /><li>Wire Connection Type: Screw terminals with straight connection orientation</li><br /><li>Pole/Wire Configuration: Three poles, four wires; grounded per IEC style</li><br /><li>Standards Compliance: UL E146032 listed; CSA Certified C22.2 No.182.1; UL IEC 60309-1 compliant</li></ul><p>&nbsp;</p>
