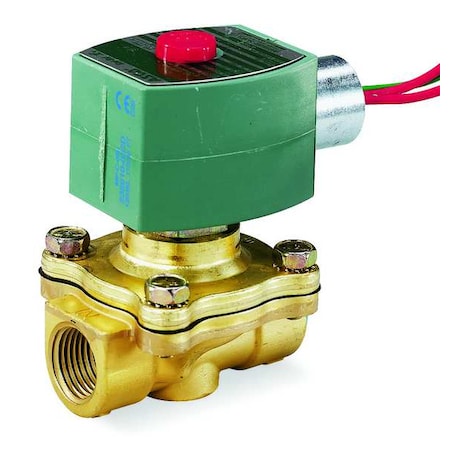

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Flow, Brass

Description

<p>The ASCO 8210G002V is a pilot-operated, normally closed solenoid valve designed to control the flow of air, inert gases, light oil, and water. It features a brass body and includes both the coil and sealing components. The valve operates within an ambient temperature range of 14°F to 140°F and is rated for fluid temperatures up to 180°F. With a nominal pipe size of 1/2 inch and NPTF inlet and outlet connections, it supports a maximum operating pressure differential of 200 psi for air/inert gas, 135 psi for light oil, and 150 psi for water. </p> <p>Key Features: <ul><li>- Valve Design: 2-Way/2-Position with 2-Position operation</li> <li>- Orifice Diameter: 5/8 in</li> <li>- Valve Type: High Flow</li> <li>- Coil Enclosure: IP66 rated; junction box not included</li> <li>- Electrical Connection: 1/2 in Conduit Hub</li> <li>- Coil Insulation Class: F</li> <li>- Voltage: 120V AC</li> <li>- Wattage: 6.1 W</li> <li>- Response Time: 1 sec</li> <li>- Seal Material: FKM</li> <li>- IP66-rated enclosure suitable for indoor and outdoor installation</li> <li>- Mounting Orientation: Vertical</li> <li>- IP Rating: 66</li> <li>- Overall Dimensions: Length 3 in, Height 3-15/16 in, Width 2-5/16 in</li> <li>- Center Line Pipe Size: 2-13/16 in</li></ul></p>
