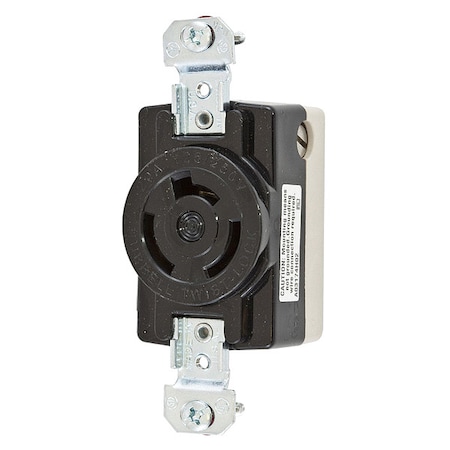

Locking Receptacle, Non-NEMA, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals

Description

<p>The HUBBELL 20A Twist-Lock Receptacle is an industrial locking receptacle intended for use with electrical connections in indoor, dry locations. It features a twist-lock mechanism with a 3-pole, 3-wire configuration and supports voltages of 125/250V AC at a current rating of 20 amps. The device has an impact-resistant nylon face and base material made from black thermoset, constructed with materials selected for durability.</p><br /><br /><p>Key Features of the HUBBELL - 20A Twist-Lock Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 20 A and compatible with both 125V and 250V AC circuits.</li><br /><li>Configuration: Non-NEMA, single-phase, polarized design with three poles and three wires.</li><br /><li>Material Construction: Impact-resistant nylon housing; brass contacts; corrosion-resistant all-brass mounting system.</li><br /><li>Wiring Compatibility: Accommodates #16 AWG to #8 AWG solid or stranded copper wire via screw terminals; suitable for both back and side wiring.</li><br /><li>Mounting Type: Flush mount installation using included screw hardware.</li><br /><li>Operating Temperature Range: Maximum continuous operation at 75°C (167°F), minimum -40°C without impact.</li><br /><li>NEMA Enclosure/IP Rating: NEMA Type 1 enclosure; IP20 rated for indoor use unless further protected.</li><br /><li>Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL Listed to UL498 standards.</li><br /></ul><p>&nbsp;</p>
