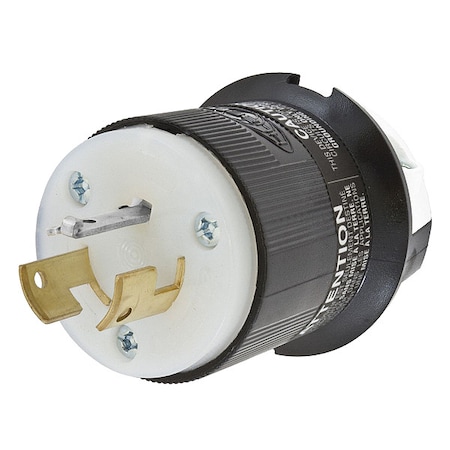

Locking Plug, Non-NEMA, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

Description

<p>The HUBBELL 20A Locking Plug is a three-pole, three-wire device rated for 125/250V AC, suitable for use in industrial environments requiring robust performance. It features a ribbed nylon housing rated for impact and chemical resistance, along with a cord grip designed to reduce strain on wire terminations. The plug includes a clear, funnel-shaped wire entry intended to facilitate wiring termination and an integral dust shield intended to limit the ingress of contaminants into the wiring chamber.</p><br /><br /><p>Key Features of the HUBBELL 20A Locking Plug:<br><br /></p><ul><br /><li>Amperage &amp; Voltage: Rated for 20 A at 125/250V AC single phase operation.</li><br /><li>Construction: Nylon housing offers durability against impacts and chemicals; brass blades provide reliable electrical connections.</li><br /><li>Cord Accommodation: Accepts cable diameters from 0.36 in to 0.93 in; suitable for all listed portable cords (#16 AWG to #8 AWG stranded copper wire).</li><br /><li>Wire Connection: Screw terminals with standard wiring style and straight connection orientation.</li><br /><li>Performance Ratings: Withstands dielectric voltage up to 2,000V minimum; certified current interrupting at full rated current; flammability rating HB or better per UL94/CSA standards.</li><br /><li>Operating Temperature Range: Maximum continuous temperature of 75°C and minimum -40°C (without impact).</li><br /><li>Ingress Protection: IP20 rating—intended for indoor dry locations unless additional protection is provided.</li><br /><li>Certifications &amp; Standards: Listed to UL 498, CSA C22.2 No.42, Federal Specification W-C-596.</li></ul><p>&nbsp;</p>
