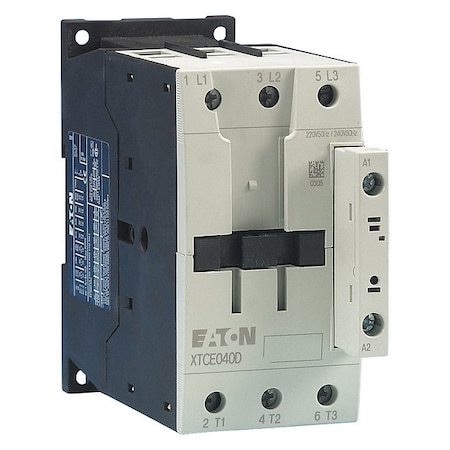

IEC Magnetic Contactor, No Auxiliary Contacts, 240V AC, 3 P, Non-Reversing, Screw

Description

<p>The Eaton XT IEC contactor is an IEC magnetic, 3-pole, non-reversing switch designed to control power circuits. It uses a 240V AC coil with screw terminals and has no auxiliary contacts. This frame D device is part of the XT series and supports mounting on a DIN rail or panel. It is rated for operation within the specified voltage and frequency ranges; contains a surge suppression component (if applicable); and is supplied without an enclosure (if applicable). Certifications include UL Listed, CSA Certified, CE Marked, EN 60947, IEC 60947, and RoHS.</p> <p>- Poles: 3</li> <li>- Action / Reversing: Non-Reversing; Reversing: N/A</li> <li>- Coil voltage: 240 V AC</li> <li>- Amperage (full load): 40 A inductive; 60 A resistive</li> <li>- Auxiliary contacts: No</li> <li>- Contact configuration: 0 NO, 0 NC</li> <li>- Electrical connection: Screw terminals</li> <li>- Frame / Series / Code: Frame D; Series XT</li> <li>- Frequency: 50/60 Hz</li> <li>- Maximum voltage rating: 690 V AC</li> <li>- Surge suppression: contains a surge suppression component (if applicable)</li> <li>- Enclosure / IP rating: No Enclosure; IP20</li> <li>- Mounting style: DIN Rail, Panel</li> <li>- Dimensions (W×H×D): 2.17 in × 4.09 in × 5.78 in</li> <li>- Mounting hole: diameter 0.16 in; hole distance (height × width): 4.13 in × 1.77 in</li> <li>- Standards: UL Listed; CSA Certified; CE Marked; EN 60947; IEC 60947; RoHS</li> <li>- Reversing: N/A</li> <li>- HP rating (3-phase at 240V): Conforms to industry standards for motor ratings at specified voltages</li></ul></p>
